The "New" Balboa Port Facility

Logo - Panama Ports Company


Balboa takes on a new look ...

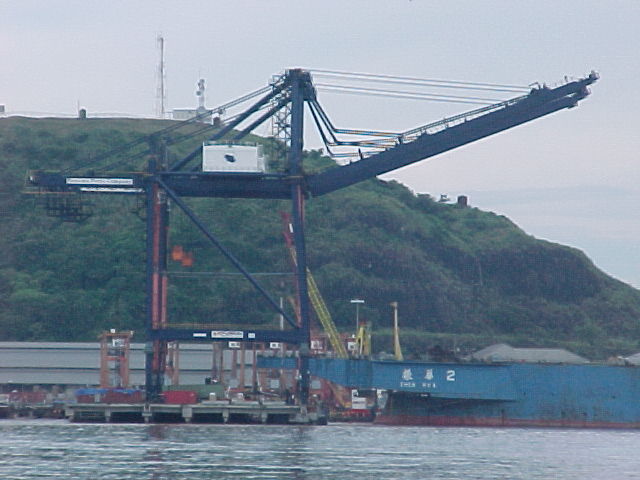

... as container cranes are installed at the new port facility


Looking towards the Port Captain's Building with Admin Building in background.    Original Pier 18 can be seen just to the left of the yellow crane boom.

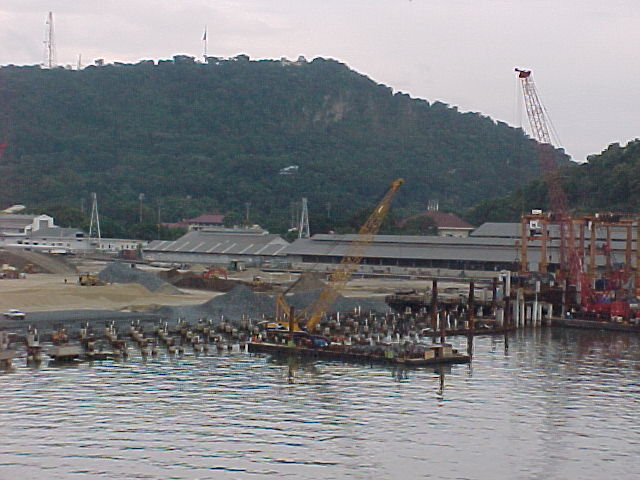

Land fill between Pier 16 and Pier 18 still has not been leveled off and paved for the container storage area.


Welldeck of the vessel allows for three of these large cranes to be transported.   Up to four of the smaller cranes can fit in the welldeck.  Note the gap under the crane, there is about two feet of crawl space. The  crane is literally suspended and is hanging on special brackets that sit on
the rail system on the edge of the welldeck.


Outer set of wheels have been rotated onto operation rails.  Note the opposite side wheels are still on the temporary offloading track.

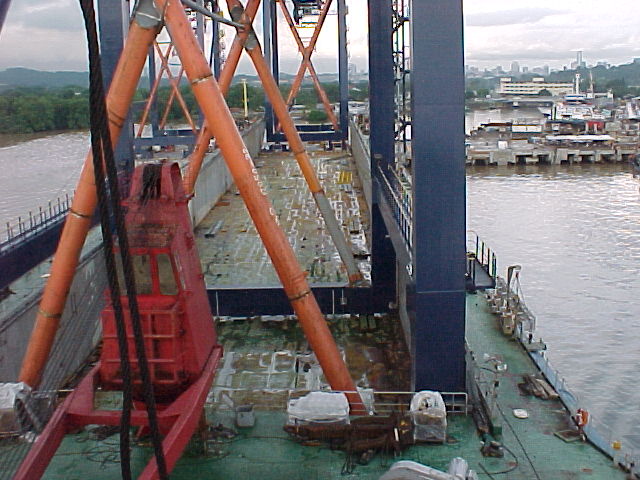

Orange crossmembers are for rigidity while vessel is underway.  They will be
removed by Panama Ports Company prior to operating.


Well deck and bow are open to the sea, Master informed me that they do watch
the weather closely and divert around rough seas and weather.


Another view of the crossmembers


Grey bracket attached to blue crane structure is what the crane is resting
on the track with.

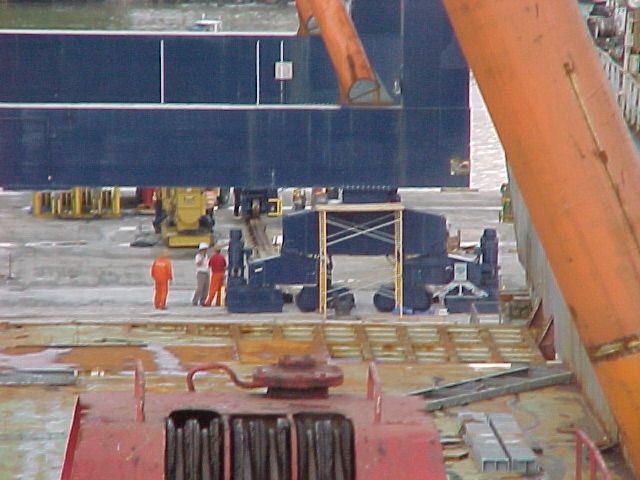

Block and tackle used by winches to pull crane out towards the bow of the ship for offloading.


Rail running the length of the upper edge of well deck can be seen with grease preperation.   The cranes are then dragged off the ship.

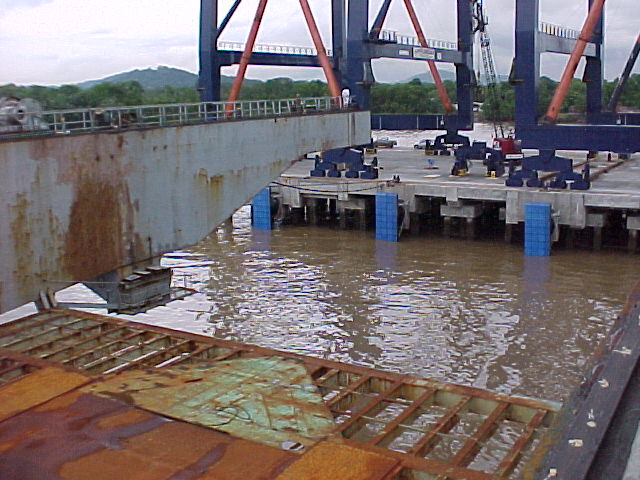

Extension of the bow overhangs the dock and the cranes are slid up to within
ten feet of the end of the rail.   Note padmount down below.  When delivering three large cranes, one end of the forwardmost crane rest down on the pad mount.


A closer look at the temporary offloading rails that are used.


One of four winches used in the dragging and offloading operation.  Two
winches are used on each side of crane for pulling back and forth should the
crane hang up on the loading or offloading operation.

Photographs by El Seņor Jim

The cranes were built by the Zhenhau Port Machinery Company Ltd (ZMPC) of Shanghai.  They are builders of heavy lift cranes which are used throughout the world.  The Oakland, CA port has purchased three cranes produced by ZMPC.
